KNOT LR9G kit for 902-928 MHz frequency
Product symbol: RB924iR-2nD-BT5&BG770A&R11e-LR9G
EAN code: 4752224010056
Previous Next
Availability
Location Available Ordered
External warehouse 2
Price
Net 604,29 zł
Gross (23% VAT) 743,28 zł
Basic data
Item nameKNOT LR9G kit for 902-928 MHz frequency
Product symbolRB924iR-2nD-BT5&BG770A&R11e-LR9G
Package sizes (HxWxL)26 x 122 x 87 mm
Weight gross15 kg
Available markets
  • UA
  • IE
  • GB
  • CH
  • PL
  • DE
  • ES
  • FR
  • IT
  • CZ
  • SK
  • HU
  • DK
  • NL
  • SE
  • GR
  • LT
  • AT
  • SI
  • LV
  • BG
  • RO
  • PT
  • BE
  • NO
  • FI
  • HR
  • GH
  • CI
  • EE
  • LI
  • LU
  • KE
  • MA
  • IL
  • CM
  • CD
  • CY
Weight & dimensions
Height
  • 26.00 millimeter
Width
  • 122.00 millimeter
Depth
  • 87.00 millimeter
Power
Power consumption (max)
  • 23.00 W
Power over Ethernet (PoE)
Input voltage
  • 12 - 57 V
Software
Operating system installed
  • RouterOS
Certificates
icecat_automatic_48024_76
  • EAC
  • Federal Communications Commission (FCC)
  • Industry Canada (IC)
Packaging content
Manual
AC adapter included
Cables included
  • OTG
Operational conditions
Operating temperature (T-T)
  • -40 - 70
Design
International Protection (IP) code
  • IP20
Mounting type

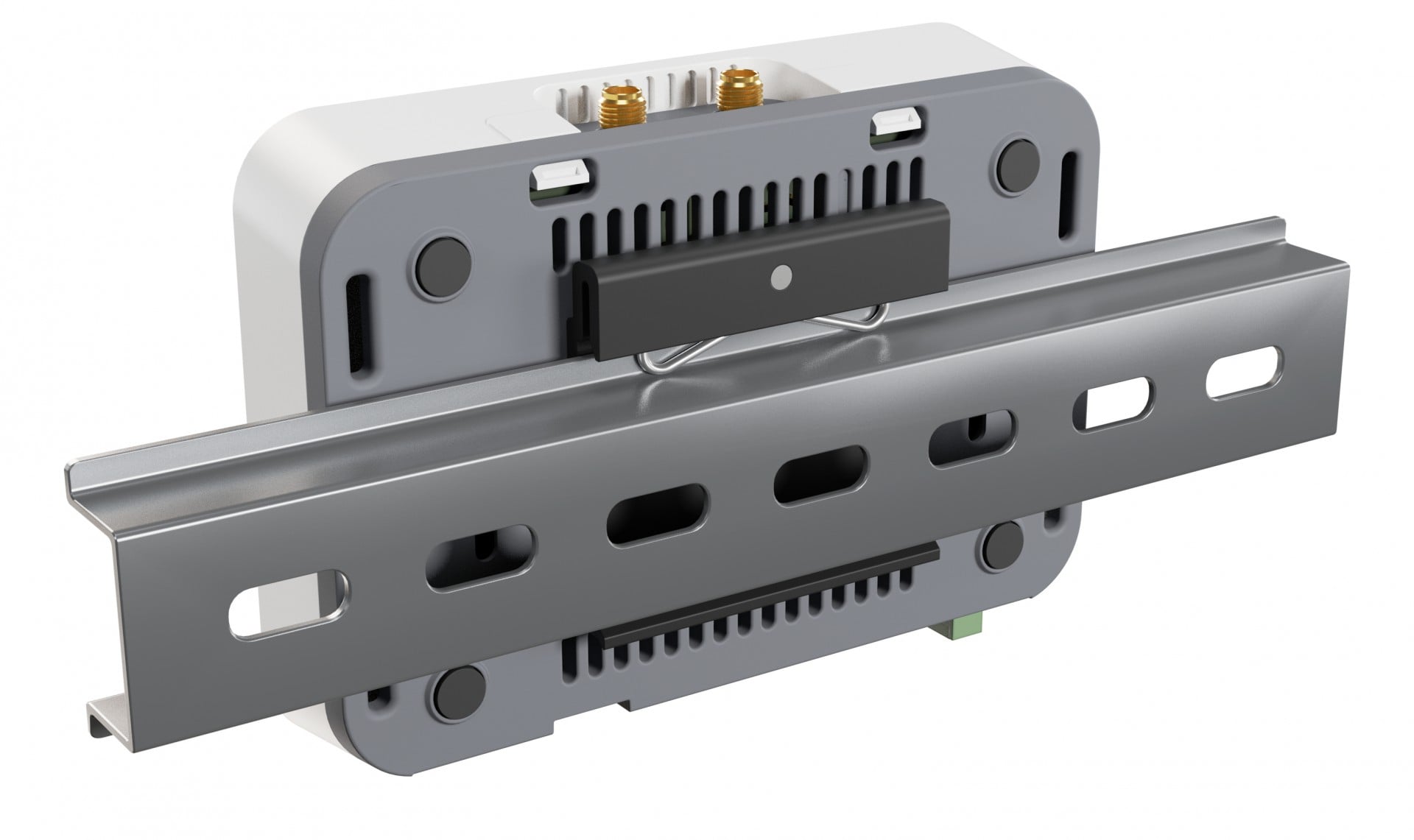

  • DIN-rail/Wall mounting
Product color
  • White
Features
GPS (satellite)
Mean time between failures (MTBF)
  • 200000.00 h
Network
Bluetooth version
  • 5.2
Wi-Fi
Cabling technology
  • 10/100Base-T(X)
Bluetooth
icecat_automatic_44492_35
Wi-Fi standards
  • 802.11b
  • 802.11g
  • Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)
  • 300.00 Mb/s
Top Wi-Fi standard
  • Wi-Fi 4 (802.11n)
Wi-Fi band
  • Single-band (2.4 GHz)
Networking standards
  • IEEE 802.3af
  • IEEE 802.3at
Ethernet LAN data rates
  • 10,100 Mbit/s
Mobile network generation
  • 4G
Performance
Built-in processor
Processor model
  • QCA9531
Processor frequency
  • 650.00 MHz
Internal memory
  • 64.00 MB
Flash memory
  • 128.00 MB
Processor manufacturer
  • Qualcomm
Ports & interfaces
SIM card type
  • NanoSIM
DC-in jack
SIM card slot
Ethernet LAN (RJ-45) ports
  • 2.00
Serial interface type
  • RS-485
Micro-USB 2.0 ports quantity
  • 1.00
Management features
Reset button
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
Mikrotik KNOT LR9G kit. Product color: White, Mounting type: DIN-rail/Wall mounting, International Protection (IP) code: IP20. Mean time between failures (MTBF): 200000 h. Processor manufacturer: Qualcomm, Processor model: QCA9531, Processor frequency: 650 MHz. Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Wi-Fi band: Single-band (2.4 GHz). SIM card type: NanoSIM, Serial interface type: RS-485
