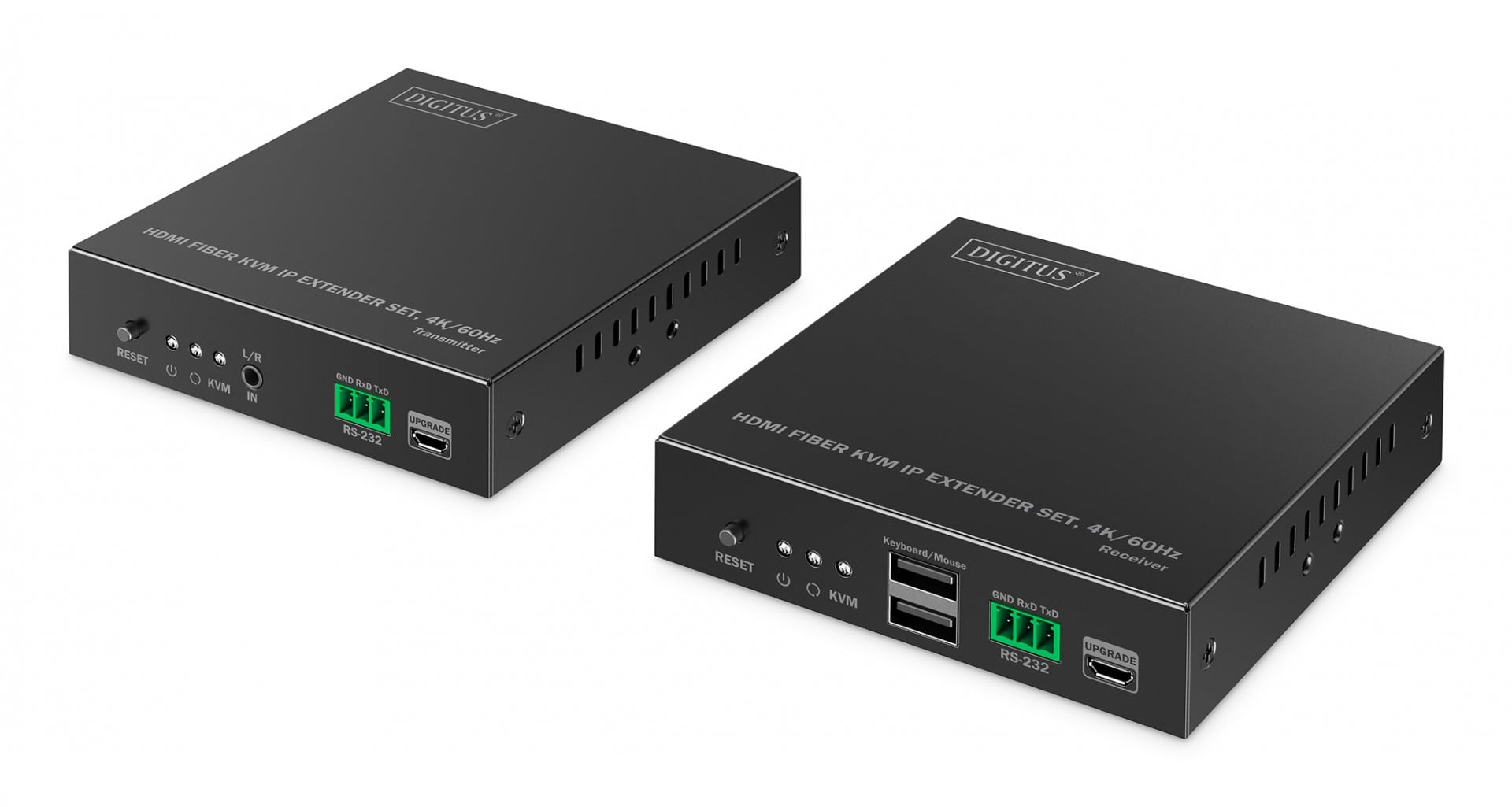

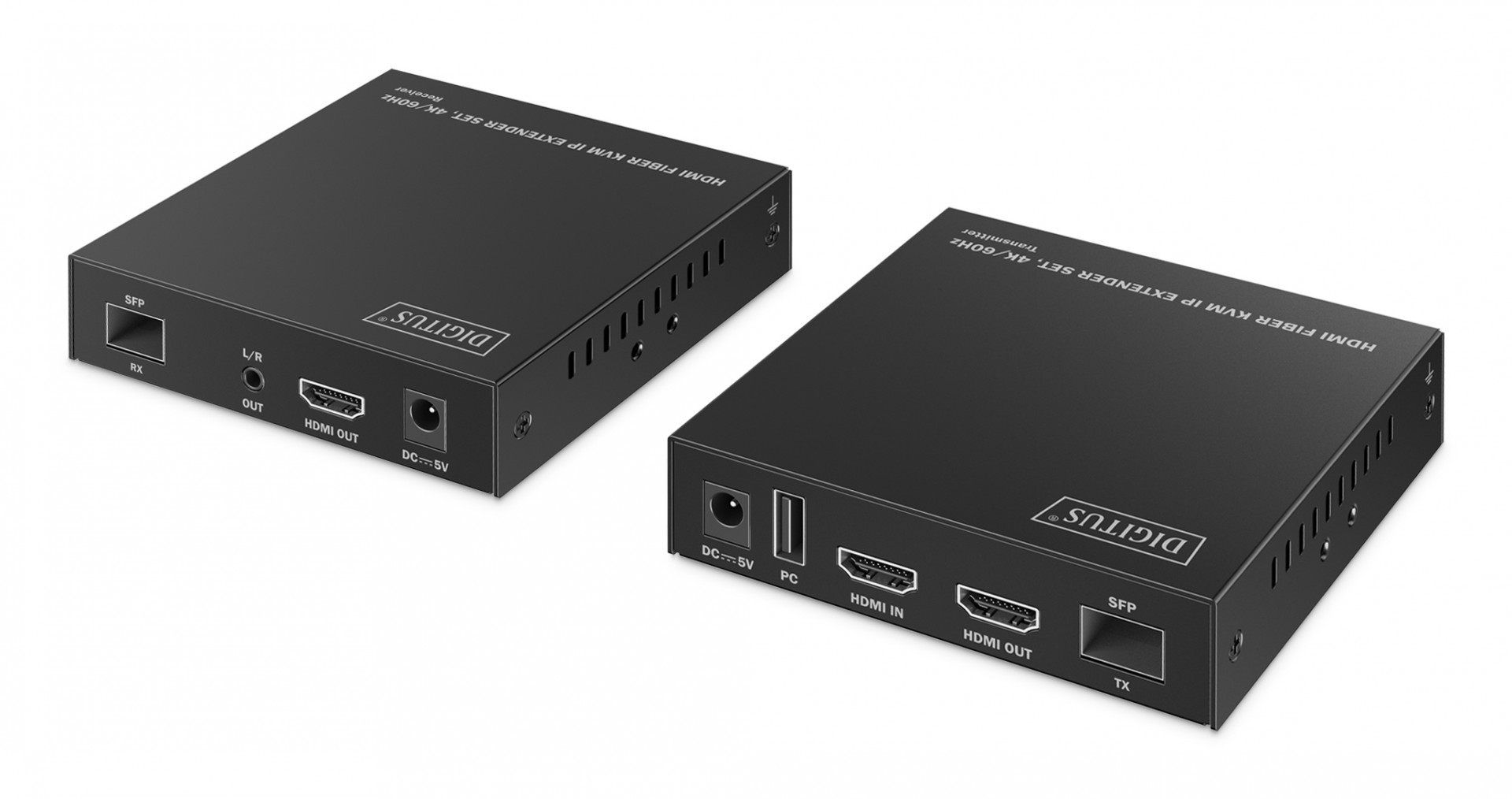

Fiber Optic HDMI Extender 4K/60Hz with KVM USB 1.1 over IP 1G up to 40km/300m, max. 253 receivers...
Product symbol: DS-55348
EAN code: 4016032501862
Previous Next
Availability
Location Available Ordered
External warehouse 1
External warehouse 8
External warehouse 9
Price
Net 1 625,85 zł
Gross (23% VAT) 1 999,80 zł
Basic data
Item nameFiber Optic HDMI Extender 4K/60Hz with KVM USB 1.1 over IP 1G up to 40km/300m, max. 253 receivers, HDMI Loop-Out, Audio - set
Product symbolDS-55348
Package sizes (HxWxL)54 x 237 x 295 mm
Weight gross1.05 kg
Available markets
  • UA
  • IE
  • GB
  • CH
  • ZA
  • PL
  • DE
  • ES
  • FR
  • IT
  • CZ
  • SK
  • HU
  • DK
  • NL
  • SE
  • GR
  • LT
  • AT
  • SI
  • LV
  • BG
  • RO
  • PT
  • BE
  • NO
  • FI
  • HR
  • GH
  • CI
  • EE
  • LI
  • LU
  • KE
  • MA
  • IL
  • CM
  • CD
  • CY
Other features
Bandwidth
  • 18.00 Gb/s
HDCP version
  • 1.4/2.2
HDCP
Weight & dimensions
Receiver depth
  • 106.00 millimeter
Receiver height
  • 26.00 millimeter
Receiver width
  • 103.00 millimeter
Transmitter depth
  • 106.00 millimeter
Transmitter height
  • 26.00 millimeter
Transmitter width
  • 103.00 millimeter
Transmitter weight
  • 307.00 gram
Receiver weight
  • 303.00 gram
Power
DC-in jack
Power consumption (receiver) (max)
  • 7.50 W
Power consumption (transmitter) (max)
  • 7.50 W
AC adapter output voltage
  • 5 V
AC adapter output current
  • 2.00 A
Packaging content
Quick installation guide
Screws included
AC adapter included
Cables included
  • USB
Mounting bracket(s) included

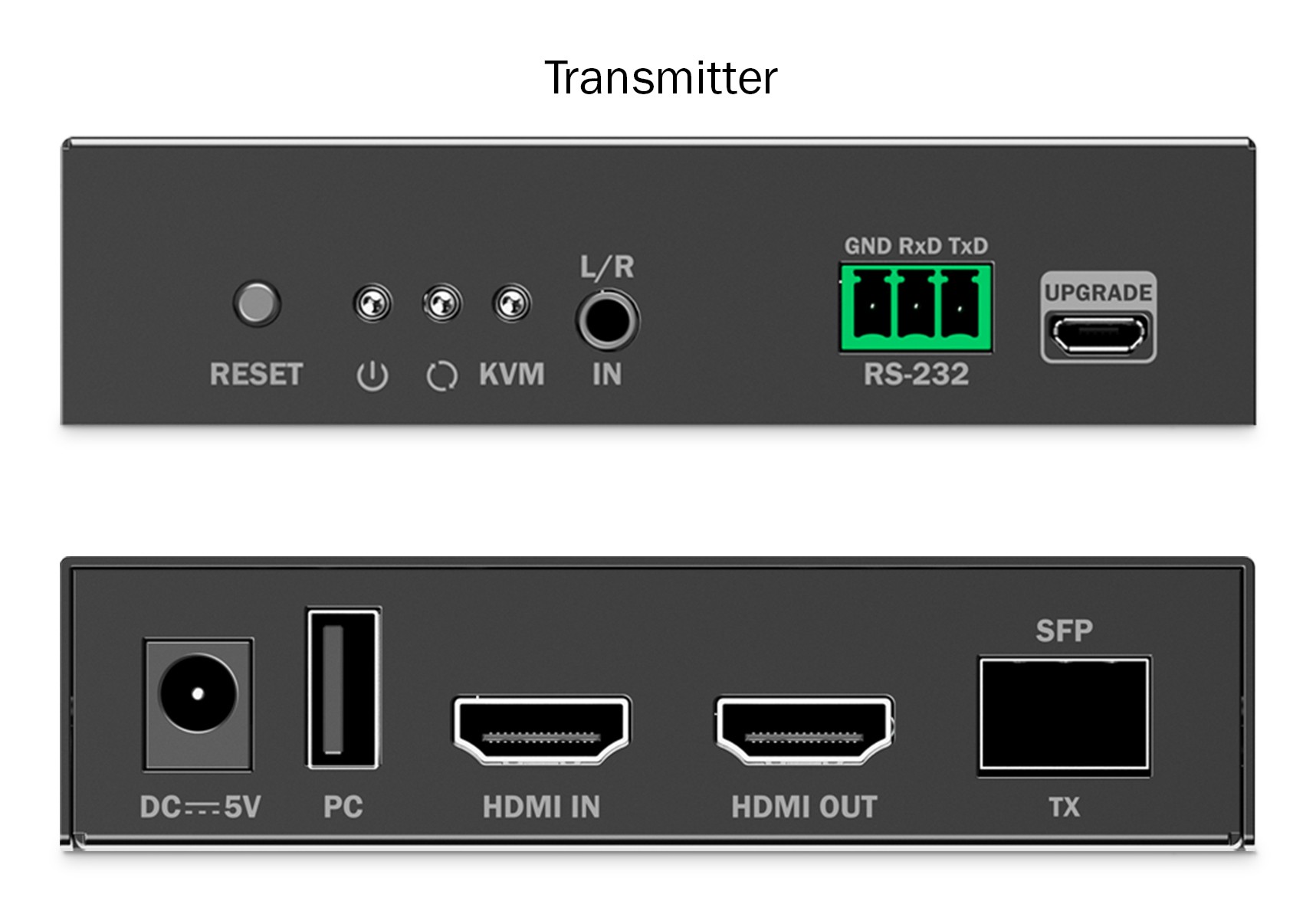

Transmitter
Transmitter Micro-USB ports quantity
  • 1.00
Transmitter local video port type
  • HDMI
Transmitter local video port
Transmitter video port type
  • HDMI
Number of displays supported
  • 1.00

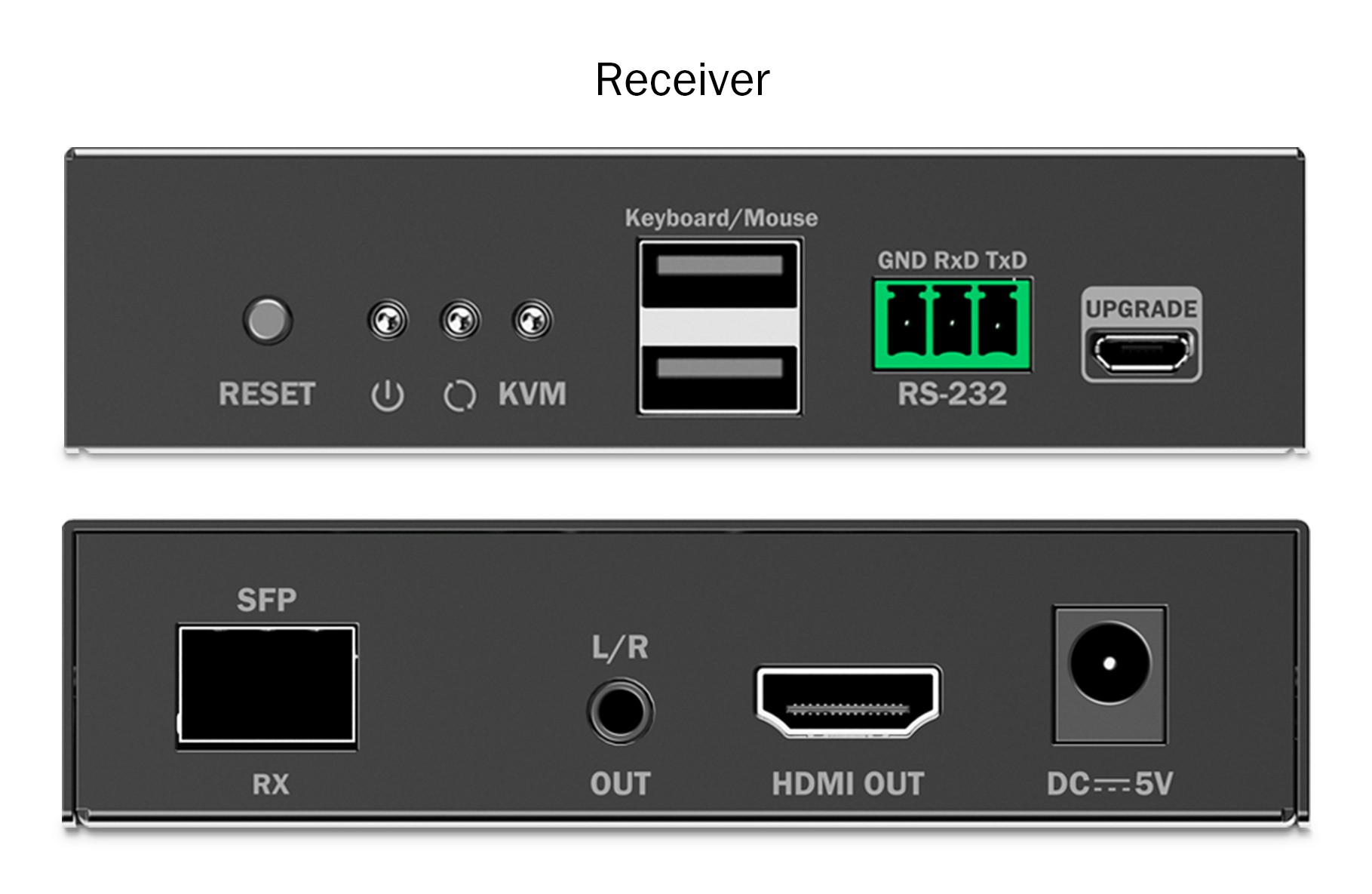

Receiver
Receiver local keyboard/mouse port type
  • USB
Receiver local video port type
  • HDMI
Receiver USB Type-A ports quantity
  • 2.00
Receiver Micro-USB ports quantity
  • 1.00
Operational conditions
Operating temperature (T-T)
  • -10 - 50
Packaging data
Package weight
  • 1170.00 gram
Package height
  • 80.00 millimeter
Package depth
  • 240.00 millimeter
Package width
  • 176.00 millimeter
Features
Material
  • Metal
Easy to install
Maximum digital resolution
  • 3840 x 2160
Maximum refresh rate
  • 60.00 Hz
LED indicators
  • Yes
Electrostatic Discharge (ESD) protection
Connectivity technology
  • Wired
Maximum transfer distance
  • 40000.00 meter
Product color
  • Black
Type
  • Transmitter & receiver
Ports & interfaces
RS-232 ports
  • 2.00
USB 1.1 ports quantity
  • 3.00
HDMI version
  • 2.0
Remote (IR) input
  • 1.00
Remote (IR) output
  • 1.00
USB port type
  • USB Type-A/Micro-USB
Installed SFP+ modules quantity
  • 2.00
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
Digitus DS-55348. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 1574803.1" (40000 m). Transmitter video port type: HDMI, Transmitter local video port type: HDMI. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. USB port type: USB Type-A/Micro-USB. AC adapter output voltage: 5 V, AC adapter output current: 2 A, Power consumption (transmitter) (max): 7.5 W
