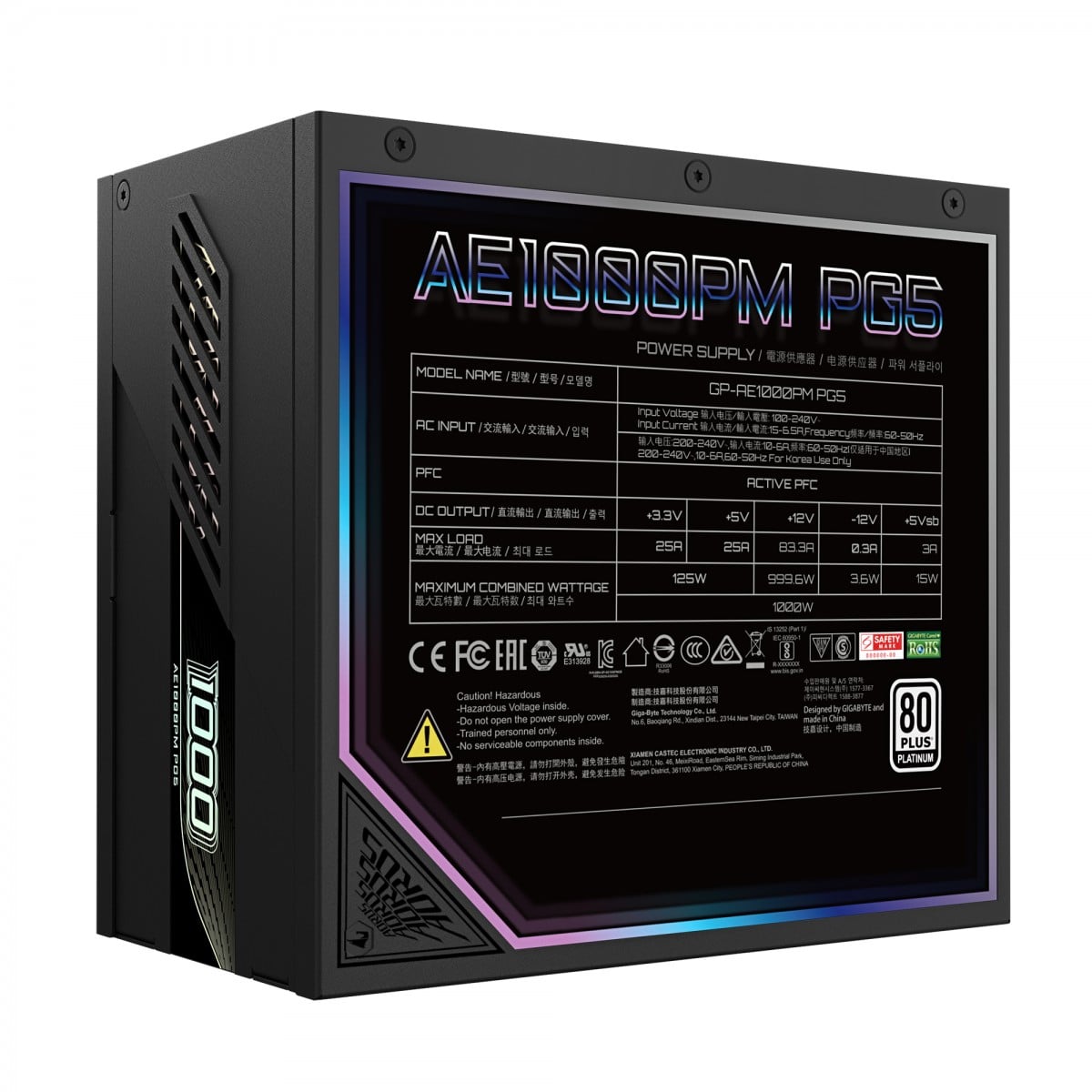

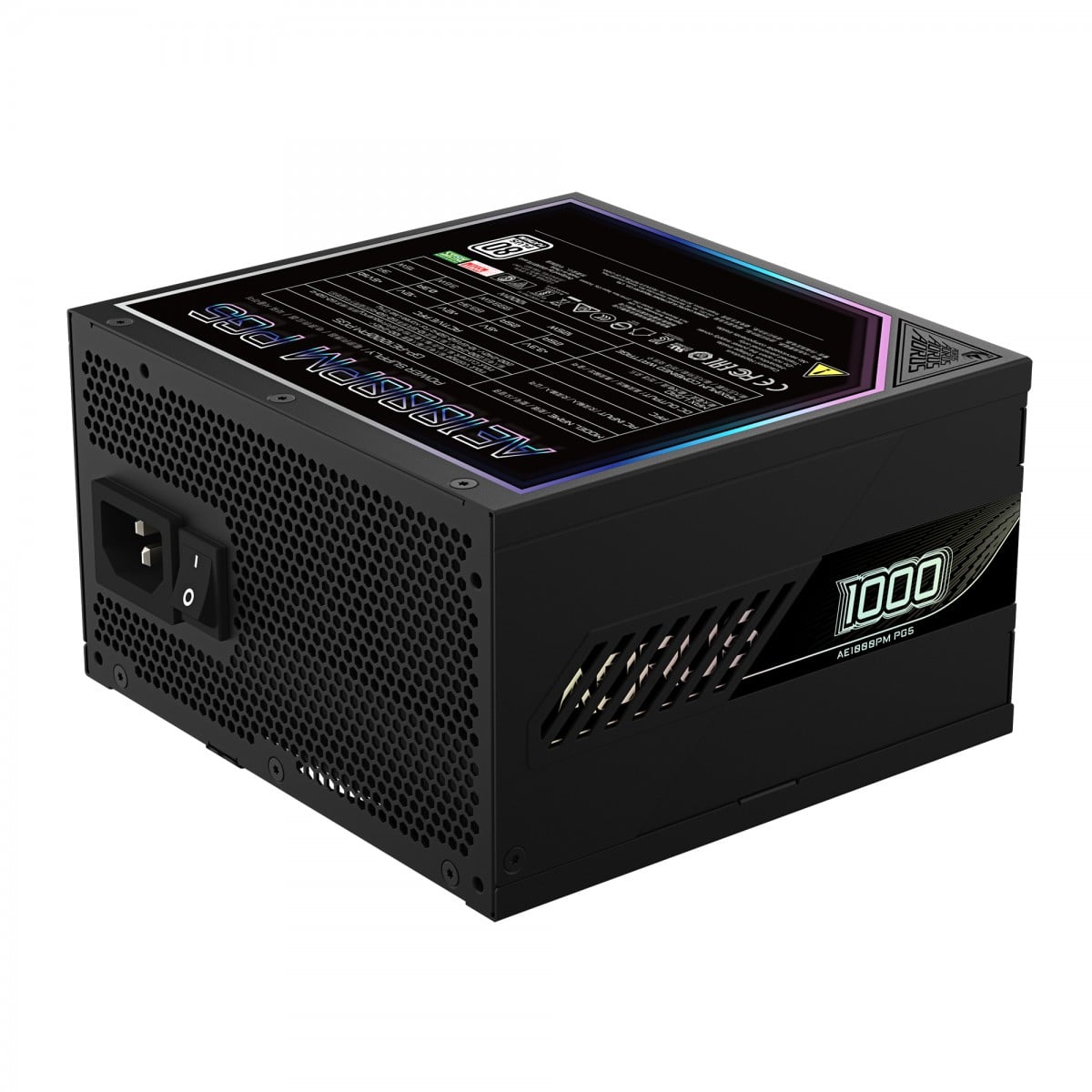

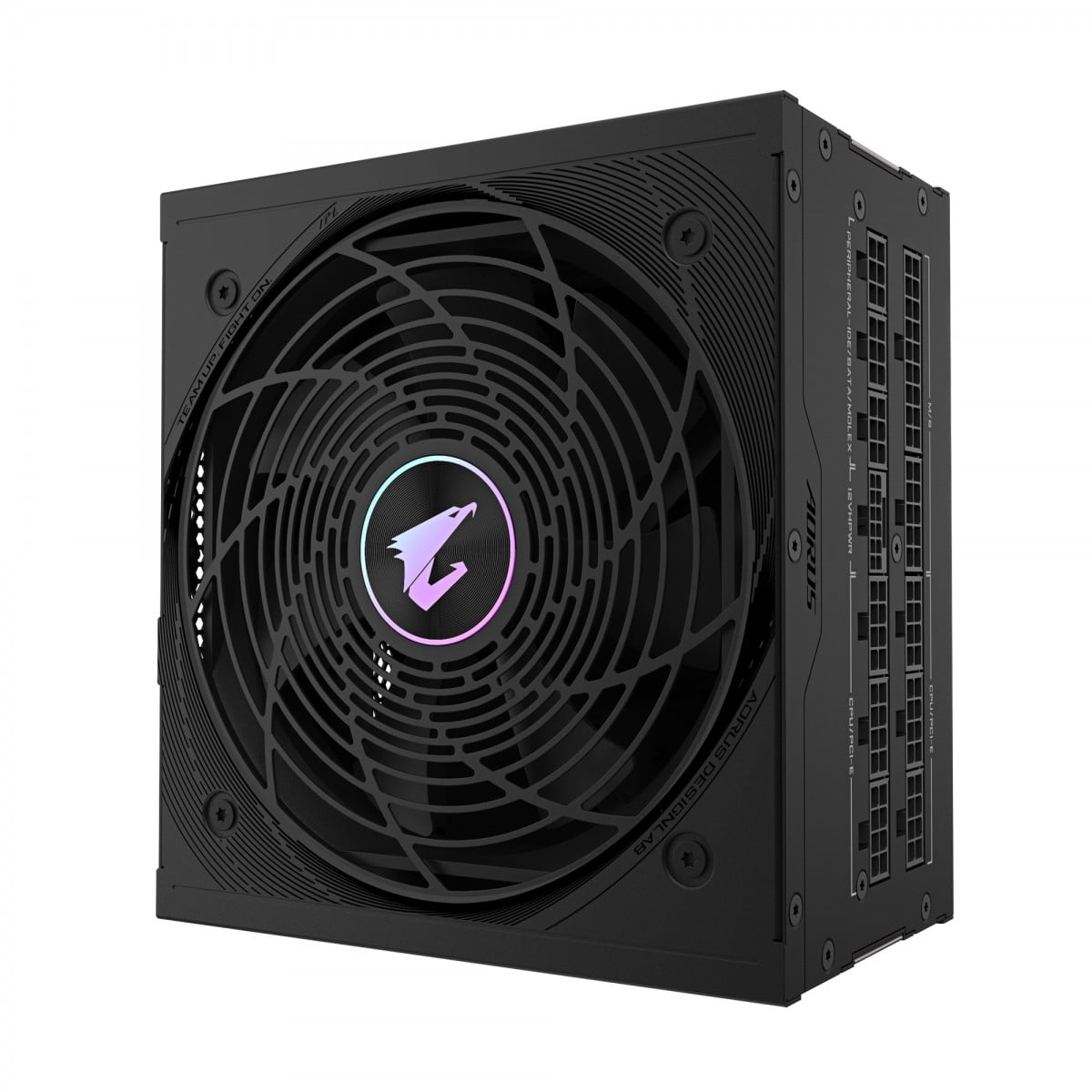

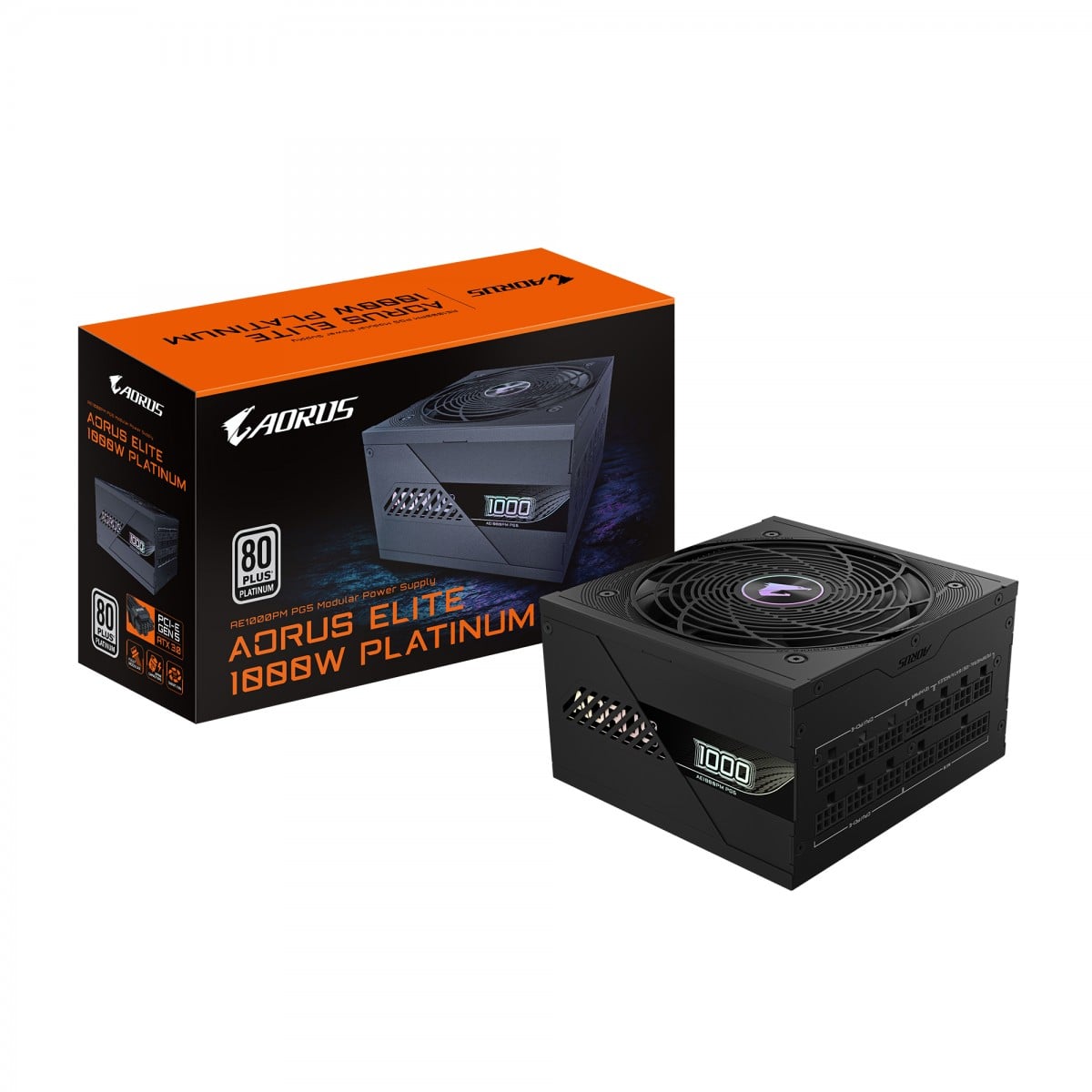

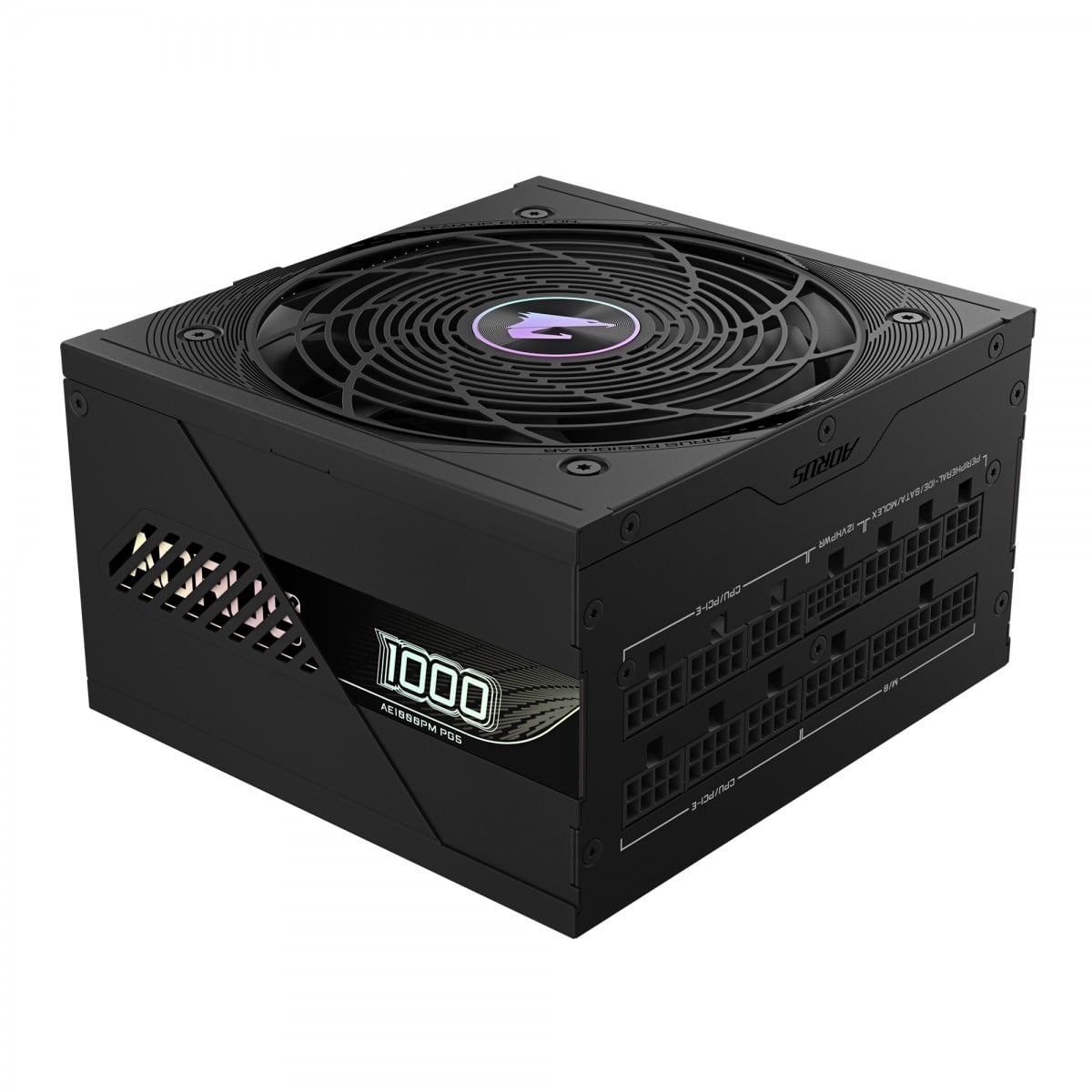

GIGABYTE AORUS ELITE P1000W 80+ Platinm Modular PSU
Product symbol: GP-AE1000PM PG5
EAN code: 4719331554521
Previous Next
Availability
Location Available Ordered
External warehouse 3
External warehouse 4
External warehouse 1
Price
Net 593,80 zł
Gross (23% VAT) 730,37 zł
Basic data
Item nameGIGABYTE AORUS ELITE P1000W 80+ Platinm Modular PSU
Product symbolGP-AE1000PM PG5
Package sizes (HxWxL)86 x 150 x 140 mm
Weight gross3.08 kg
Available markets
  • IE
  • CH
  • PL
  • DE
  • ES
  • FR
  • IT
  • CZ
  • SK
  • HU
  • DK
  • NL
  • SE
  • GR
  • LT
  • AT
  • SI
  • LV
  • BG
  • RO
  • PT
  • BE
  • NO
  • FI
  • HR
  • EE
  • LI
  • LU
  • CY
Logistics data
Warranty period
  • 10.00 years
Weight & dimensions
Height
  • 86.00 millimeter
Width
  • 150.00 millimeter
Depth
  • 140.00 millimeter
Weight
  • 3080.00 gram
Power
Power protection features
  • Over current
  • Over power
  • Over voltage
  • Overheating
  • Short circuit
  • Under voltage
Efficiency
  • 92%
Hold time
  • 16.00 ms
Total power
  • 1000.00 W
Power Good signal delay range
  • 100 - 150
Input current
  • 15 - 6.5 A
AC input frequency
  • 50/60 Hz
Max output current (+5Vsb)
  • 3.00 A
Max output current (-12V)
  • 0.30 A
Max output current (+5V)
  • 25.00 A
Max output current (+12V)
  • 83.30 A
Max output current (+3.3V)
  • 25.00 A
Combined power (+5Vsb)
  • 15.00 W
Combined power (-12V)
  • 3.60 W
Combined power (+5V)
  • 125.00 W
Combined power (+12V)
  • 999.60 W
Combined power (+3.3V)
  • 125.00 W
Power Factor Correction (PFC) type
  • Active
AC input voltage
  • 100 - 240 V
Power factor
  • 0.90
Packaging data
Package weight
  • 3724.00 gram
Package type
  • Box
Package height
  • 120.00 millimeter
Package depth
  • 206.00 millimeter
Package width
  • 340.00 millimeter
Design
Number of fans
  • 1 fan(s)
On/off switch
Fan location
  • Top
Cooling type
  • Active
Product color
  • Black
Performance
Purpose
  • PC
Bearing technology
  • Ball bearing
ATX version
  • 3.1
Power supply unit (PSU) form factor
  • ATX
80 PLUS certification
  • 80 PLUS Platinum
Mean time between failures (MTBF)
  • 100000.00 h

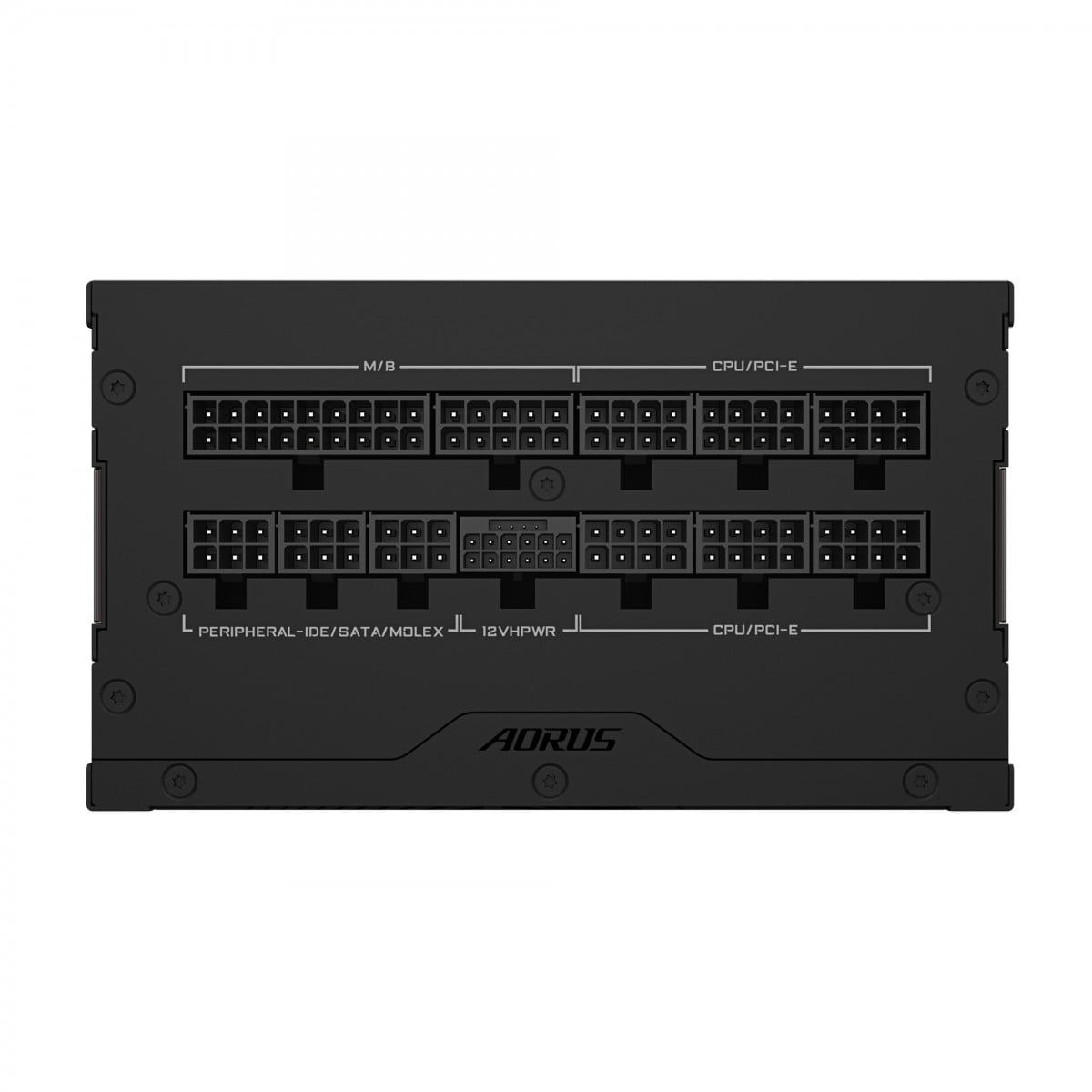

Ports & interfaces
Cabling type
  • Fully-Modular
Floppy disk drive connector
PCI Express connector
Peripheral (Molex) power connectors (4-pin)
  • 4.00
Floppy drive power connector
  • 2.00
ATX power connector (20+4 pin)
CPU power connector (4+4 pin)
PCI Express power connectors (6+2 pin)
  • 6.00
Number of SATA power connectors
  • 6.00
Motherboard power cable length
  • 650.00 millimeter
Motherboard power connector
  • 20+4 pin ATX
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
GIGABYTE AORUS ELITE P1000W. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 25.6" (65 cm), Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product color: Black, Cooling type: Active, Fan diameter: 4.72" (12 cm). Width: 5.91" (150 mm), Depth: 5.51" (140 mm), Height: 3.39" (86 mm)
