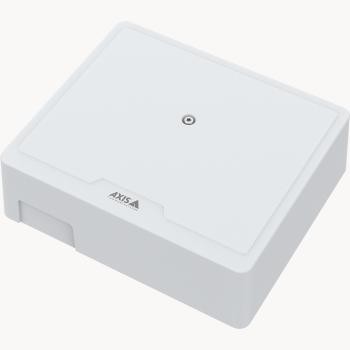

AXIS 02368-001 security door controller Housing 1 door(s)
Product symbol: 02368-001
EAN code: 7331021076488
Previous Next
Availability
Location Available Ordered
External warehouse 1
Price
Net 2 115,24 zł
Gross (23% VAT) 2 601,75 zł
Basic data
Item nameAXIS 02368-001 security door controller Housing 1 door(s)
Product symbol02368-001
Package sizes (HxWxL)50 x 144 x 122 mm
Weight gross0.65 kg
Available markets
  • UA
  • IE
  • GB
  • CH
  • ZA
  • PL
  • DE
  • ES
  • FR
  • IT
  • CZ
  • SK
  • HU
  • DK
  • NL
  • SE
  • GR
  • LT
  • AT
  • SI
  • LV
  • BG
  • RO
  • PT
  • BE
  • NO
  • FI
  • HR
  • GH
  • CI
  • EE
  • LI
  • LU
  • KE
  • MA
  • IL
  • CM
  • CD
  • CY
Weight & dimensions
Height
  • 50.00 millimeter
Width
  • 144.00 millimeter
Depth
  • 122.00 millimeter
Weight
  • 645.00 gram
Power
Operating voltage
  • 12.00 volt
DC voltage range
  • 11.5 - 12.5 V
Technical details
Maximum number of doors
  • 1 door(s)
Case design
  • Housing
Supported network protocols
  • IPv4, IPv6, HTTP, HTTPSc, TLSc, QoS Layer 3 DiffServ, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SOCKS, SSH, MQTT v3.1.1, Syslog
Operational conditions
Operating temperature (T-T)
  • 0 - 55
Operating relative humidity (H-H)
  • 20 - 85
Storage temperature (T-T)
  • -40 - 70
Performance
Certification
  • UL 2043 UL294 EAC, EN 55035, EN 55032 Class B, EN 50130-4, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class B, KC KN35 IEC/EN/UL 62368-1, UL 294, UL 2043 Environment NEMA TS 2 (2.2.7-2.2.9), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 CSA C22.2 No. 205-1983
Wiegand interface
Internal storage capacity
  • 2.00 GB
Internal memory
  • 0.51 GB
Storage media
  • Flash
Alarm input channels
  • 7.00
Number of built-in relays
  • 1.00
Ethernet LAN
Ethernet LAN data rates
  • 10,100,1000 Mbit/s
Ports & interfaces
Ethernet LAN (RJ-45) ports
  • 1.00
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
Axis 02368-001. Internal memory: 0.512 GB, Internal storage capacity: 2 GB, Storage media: Flash. Operating voltage: 12 V, DC voltage range: 11.5 - 12.5 V. Width: 5.67" (144 mm), Depth: 4.8" (122 mm), Height: 1.97" (50 mm)
