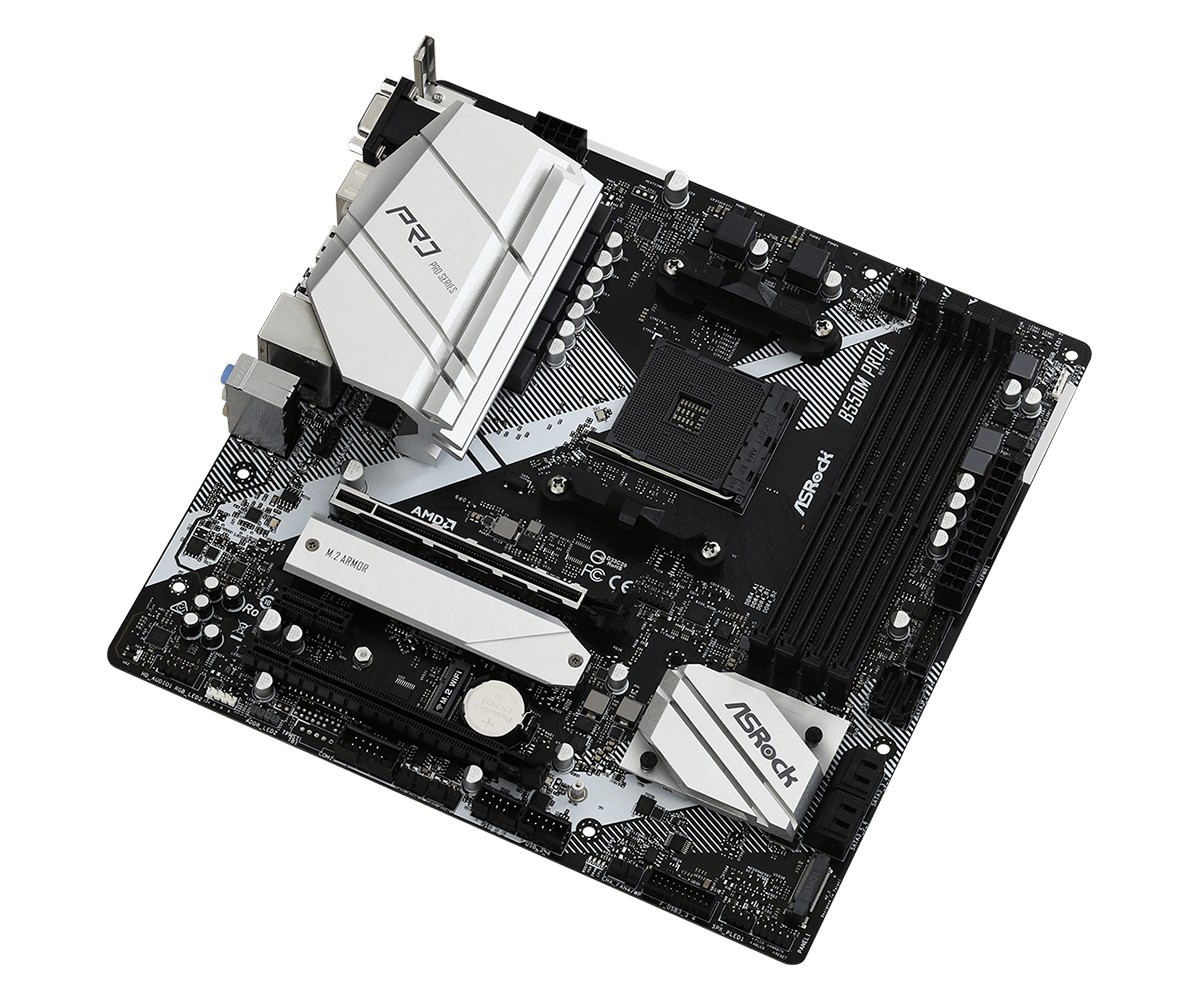

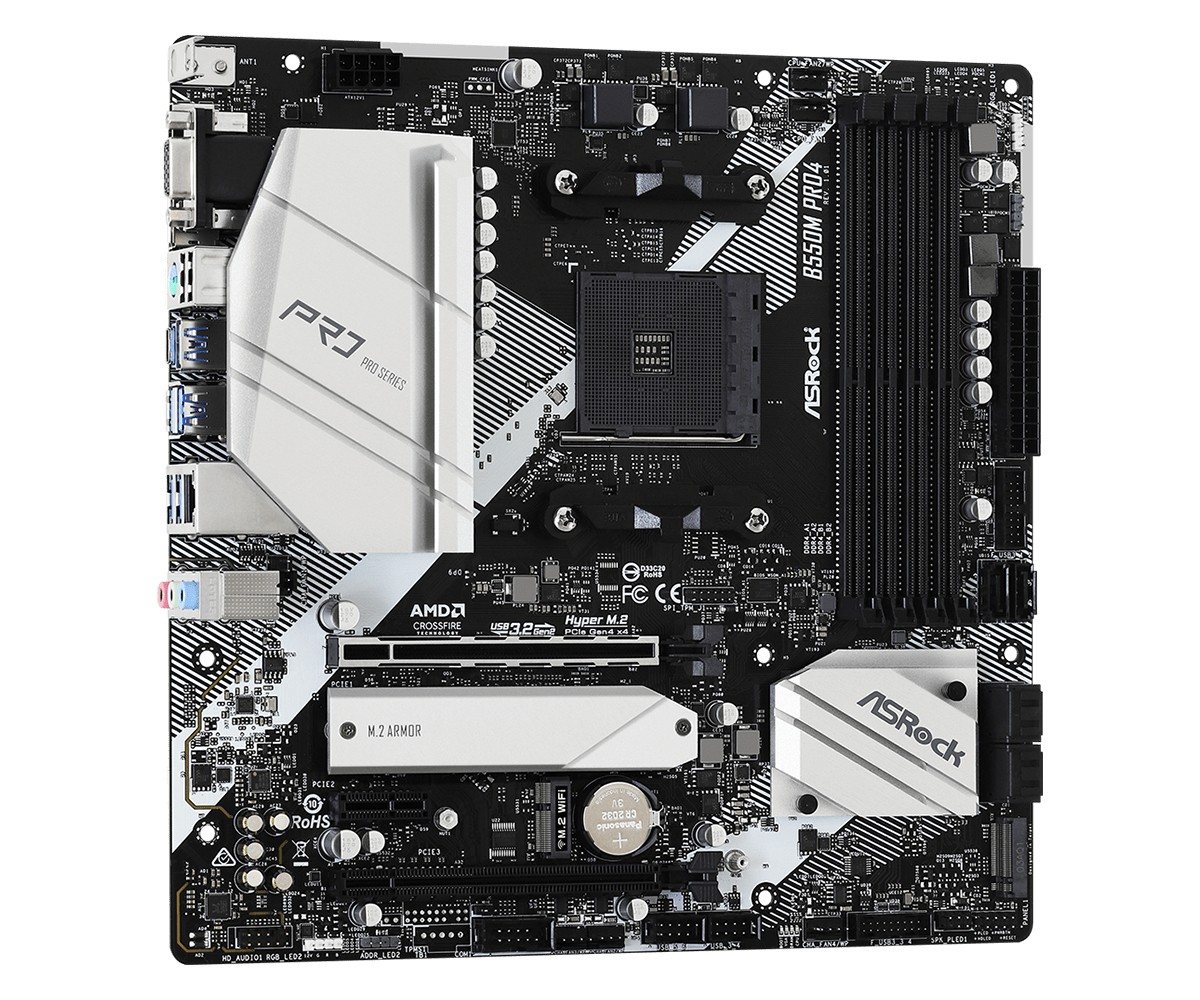

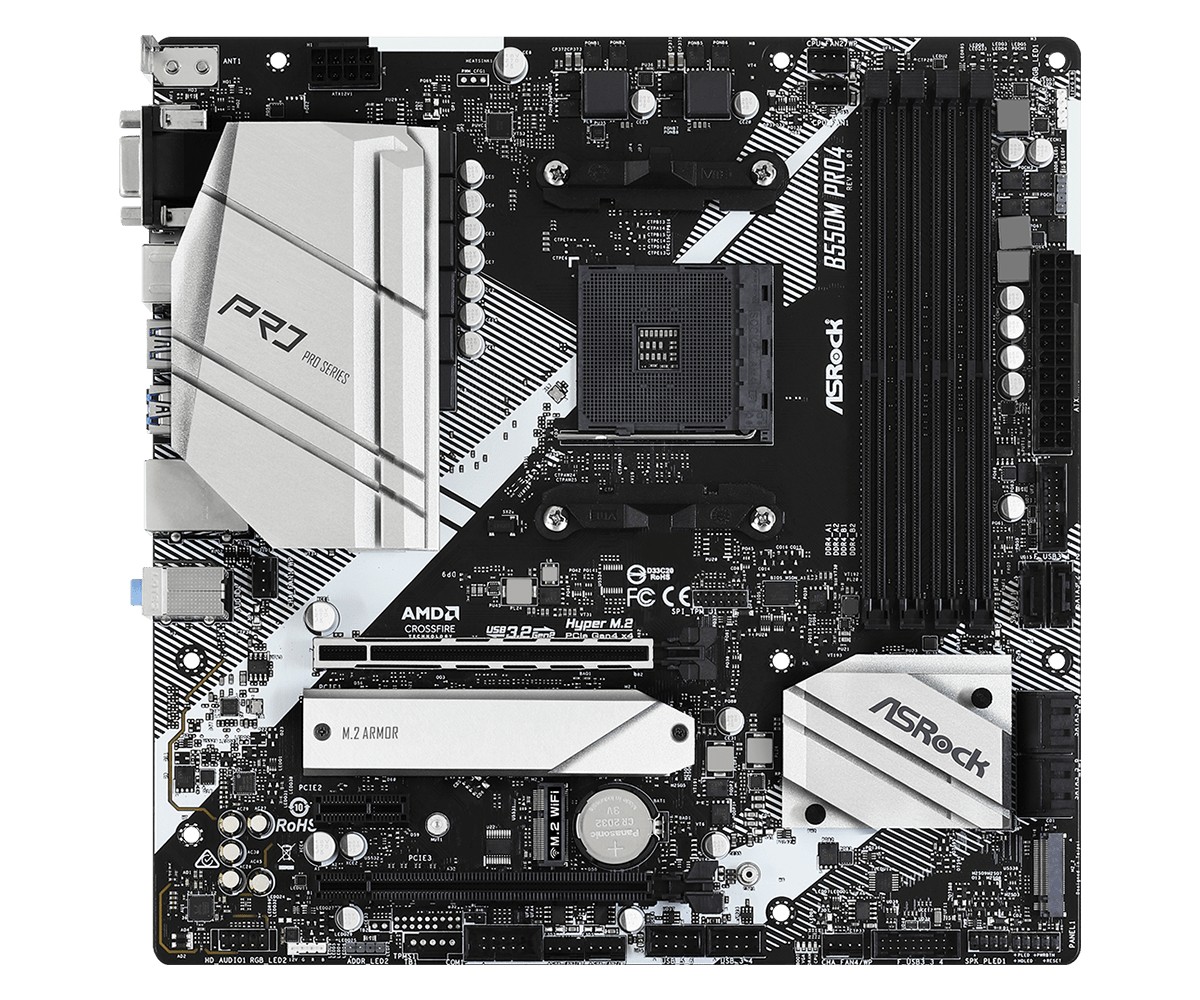

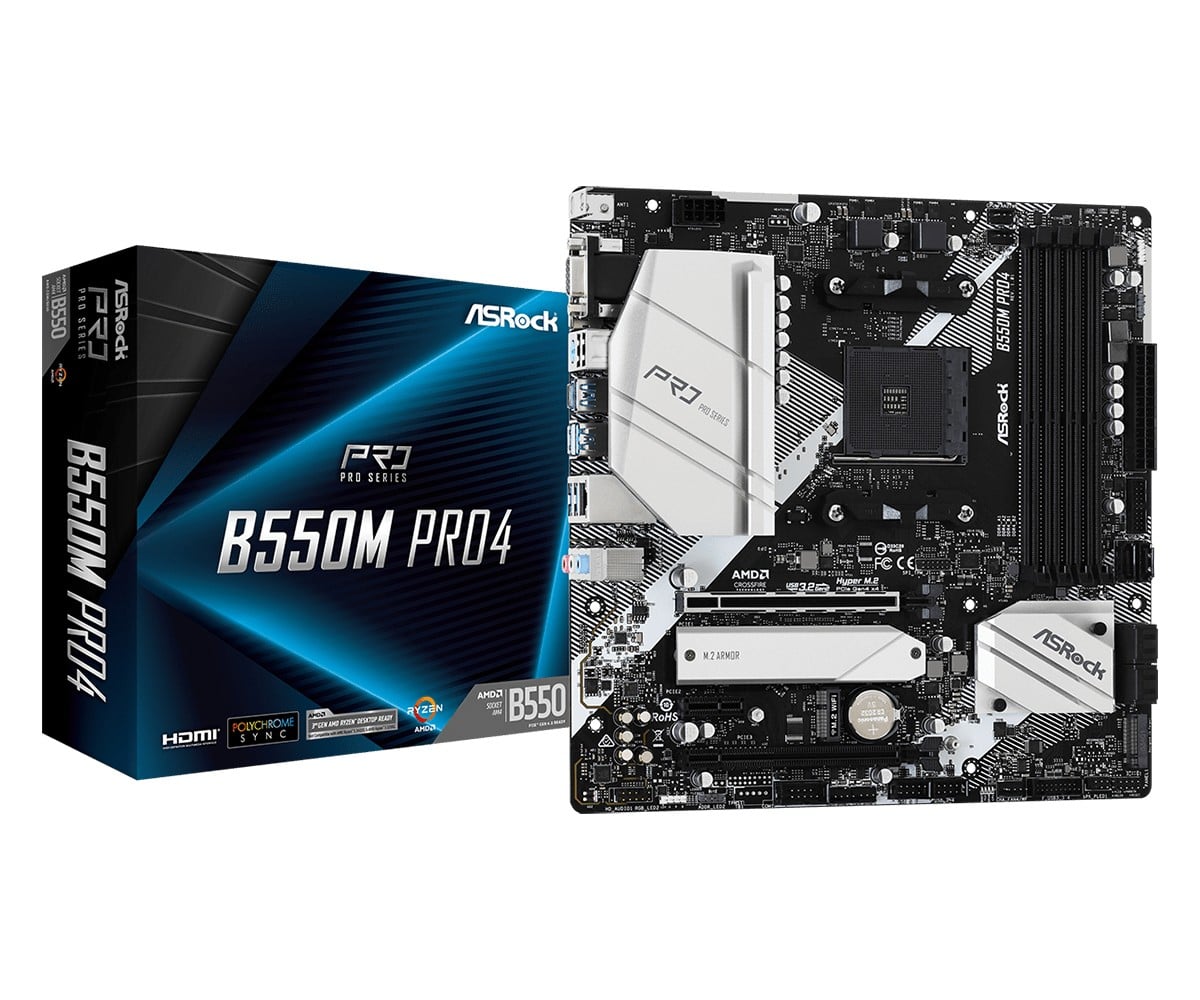

ASRock B550M PRO4 AMD Ryzen 3000 Series Motherboard with DDR4 Support
Product symbol: B550M PRO4
Previous Next
Availability
Location Available Ordered
External warehouse 2
External warehouse 7
External warehouse 1
Price
Net 384,35 zł
Gross (23% VAT) 472,75 zł
Basic data
Item nameASRock B550M PRO4 AMD Ryzen 3000 Series Motherboard with DDR4 Support
Product symbolB550M PRO4
Package sizes (HxWxL)60 x 260 x 280 mm
Weight gross1.20 kg
Available markets
  • UA
  • IE
  • GB
  • CH
  • ZA
  • PL
  • DE
  • ES
  • FR
  • IT
  • CZ
  • SK
  • HU
  • DK
  • NL
  • SE
  • GR
  • LT
  • AT
  • SI
  • LV
  • BG
  • RO
  • PT
  • BE
  • NO
  • FI
  • HR
  • GH
  • CI
  • EE
  • LI
  • LU
  • KE
  • MA
  • IL
  • CM
  • CD
  • CY
Logistics data
Harmonized System (HS) code
  • 84733020
Other features
Weight
  • 465.00 gram
Weight & dimensions
Height
  • 70.00 millimeter
Width
  • 244.00 millimeter
Depth
  • 244.00 millimeter
Packaging content
Drivers included
Cables included
  • SATA
BIOS
System Management BIOS (SMBIOS) version
  • 2.3
ACPI version
  • 5.1
BIOS type
  • UEFI AMI
BIOS memory size
  • 256.00 MBit
Expansion slots
Number of M.2 (M) slots
  • 3.00
PCI Express x16 (Gen 3.x) slots
  • 1.00
PCI Express x16 (Gen 4.x) slots
  • 1.00
PCI Express x1 (Gen 3.x) slots
  • 1.00

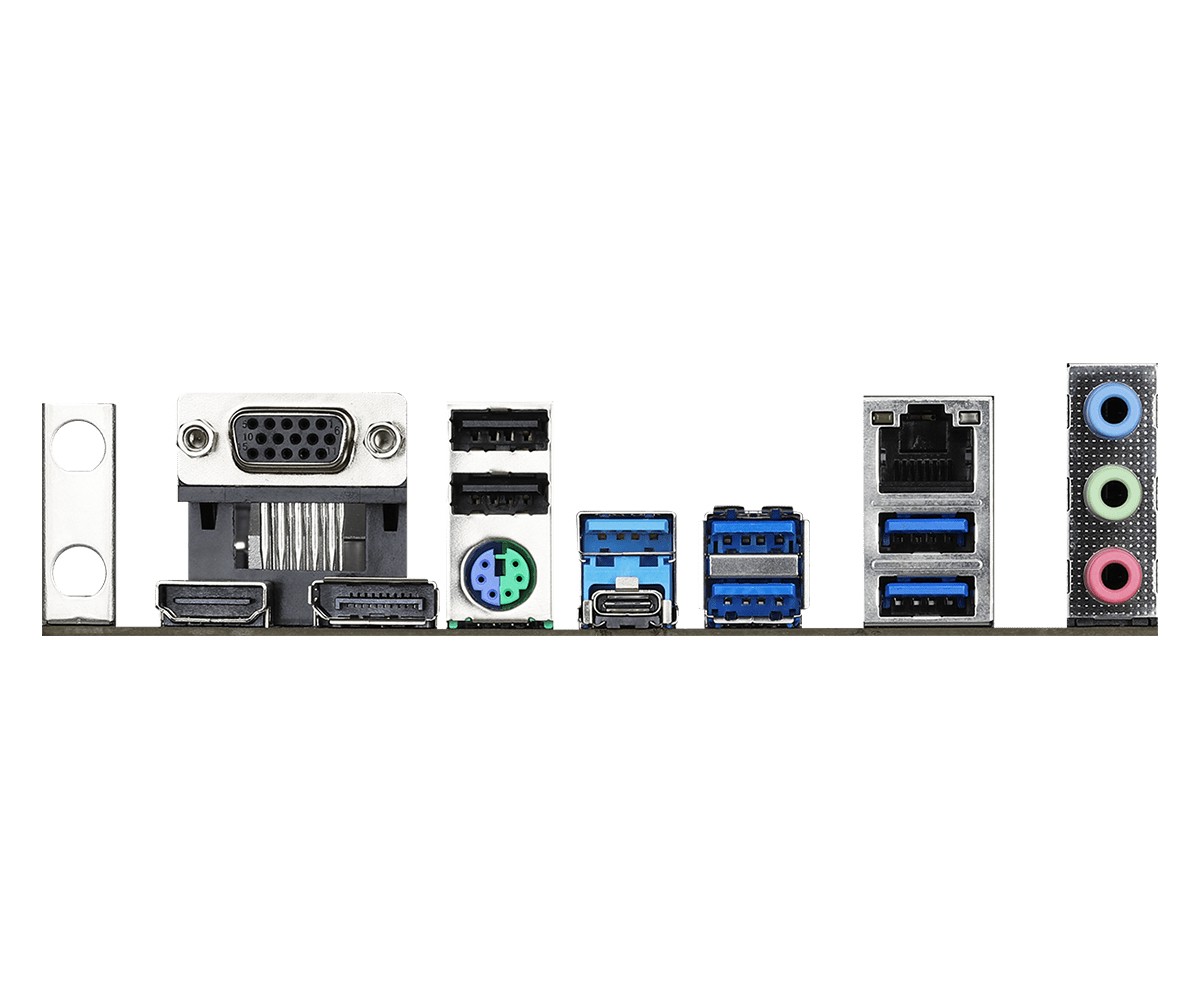

Rear panel I/O ports
DisplayPort version
  • 1.4
DisplayPorts quantity
  • 1.00
PS/2 ports quantity
  • 1.00
HDMI version
  • 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 4
HDMI ports quantity
  • 1.00
Microphone in
VGA (D-Sub) ports quantity
  • 1.00
Ethernet LAN (RJ-45) ports
  • 1.00
USB 2.0 ports quantity
  • 2.00
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 1.00
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 1.00
Internal I/O
RGB LED pin header
12V power connector
Number of COM connectors
  • 1
TPM connector
EPS power connector (8-pin)
Number of chassis fan connectors
  • 4
CPU fan connector
ATX Power connector (24-pin)
Front panel connector
Front panel audio connector
Number of SATA II connectors
  • 6.00
USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 2.00
USB 2.0 connectors
  • 2.00
Storage controllers
Supported storage drive interfaces
  • M.2, SATA III
Supported storage drive types
  • HDD & SSD
RAID levels
  • 0
  • 1
  • 10
RAID support
Features
Certification
  • FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
Motherboard chipset family
  • AMD
PC health monitoring
  • CPU
  • FAN
  • Temperature
  • Voltage
Windows operating systems supported
  • Windows 10 x64
  • Windows 11 x64
Audio output channels
  • 7.1
Audio chip
  • Realtek ALC1200
Motherboard form factor
  • Micro ATX
Component for
  • PC
Motherboard chipset
  • AMD B550
Graphics
Parallel processing technology support
  • CrossFireX
  • Quad-GPU CrossFireX
Maximum resolution
  • 5120 x 2880
HDCP
DirectX version
  • 12.0
Number of displays supported
  • 3.00
Memory
Maximum internal memory
  • 128.00 GB
Supported memory clock speeds
  • 2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533,4600,4666,4733 MHz
Memory slots type
  • DIMM
Number of memory slots
  • 4.00
Unbuffered memory
Supported memory module capacities
  • 16GB
  • 32GB
  • 4GB
  • 8GB
Supported memory clock speed (max)
  • 4733.00 MHz
icecat_automatic_48433_3
  • ECC & non-ECC
Memory channels
  • Dual-channel
Supported memory types
  • DDR4-SDRAM
Network
Wake-on-LAN ready
LAN controller
  • Realtek RTL8111H
Ethernet interface type
  • Gigabit Ethernet
Ethernet LAN
Processor
Maximum number of SMP processors
  • 1.00
Compatible processor series
  • AMD Ryzen 3000 Series
Supported processor sockets
  • Socket AM4
Processor socket
  • Socket AM4
Processor manufacturer
  • AMD
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
Asrock B550M Pro4. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Parallel processing technology support: CrossFireX, Quad-GPU CrossFireX, Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
