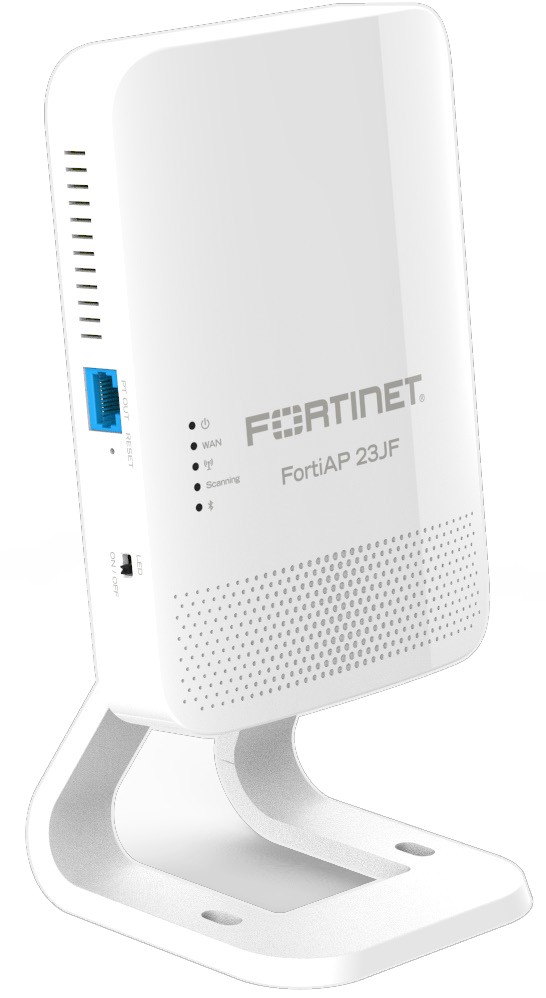

Fortinet FortiAP 23JF 1200 Mbit/s White
Product symbol: FAP-23JF-E
Previous Next
1689909_FAP_23JF_E_image1 (1).jpg
Availability
Location Available Ordered
External warehouse 1
Price
Net 1 913,82 zł
Gross (23% VAT) 2 354,00 zł
Basic data
Item nameFortinet FortiAP 23JF 1200 Mbit/s White
Product symbolFAP-23JF-E
Package sizes (HxWxL)295 x 210 x 155 mm
Weight gross0.95 kg
Available markets
  • PL
  • ES
  • FR
  • IT
  • HU
  • SE
  • NO
Weight & dimensions
Weight
  • 450.00 gram
Height
  • 28.00 millimeter
Width
  • 168.00 millimeter
Depth
  • 117.00 millimeter
Antenna
Antenna type
  • Internal
Antennas quantity
  • 3.00
Antenna gain level (max)
  • 4 dBi
Antenna features
  • Integrated antenna
Power
Power consumption (typical)
  • 17.50 W
Power over Ethernet (PoE)
Certificates
Certification
  • CE, Taiwan
icecat_automatic_48024_76
  • RoHS
Packaging content
Mounting kit
Quantity per pack
  • 1.00 pcs
Sustainability
Sustainability certificates
  • RoHS
Operational conditions
Operating temperature (T-T)
  • 0 - 50
Operating relative humidity (H-H)
  • 10 - 90
Storage temperature (T-T)
  • -30 - 70
Packaging data
Package weight
  • 700.00 gram
Design
Placement
  • Wall
Cable lock slot type
  • Kensington
Cable lock slot
Product color
  • White
Features
MIMO
MIMO type
  • Multi User MIMO
Maximum data transfer rate
  • 1200.00 Mb/s
Channel bandwidth
  • 80.00 MHz
Modulation
  • 1024-QAM
  • 256-QAM
  • 64-QAM
  • BPSK
  • QPSK
Networking standards
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ad
  • IEEE 802.11ax
  • IEEE 802.11b
  • IEEE 802.11d
  • IEEE 802.11e
  • IEEE 802.11g
  • IEEE 802.11h
  • IEEE 802.11i
  • IEEE 802.11j
  • IEEE 802.11k
  • IEEE 802.11n
  • IEEE 802.11r
  • IEEE 802.11v
  • IEEE 802.11w
  • IEEE 802.1Q
  • IEEE 802.1af
  • IEEE 802.1x
  • IEEE 802.3at
  • IEEE 802.3az
  • IEEE 802.3bz
Number of users
  • 512 user(s)
Frequency band
  • 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Ethernet LAN data rates
  • 10,100,1000 Mbit/s
Maximum data transfer rate (5 GHz)
  • 1200.00 Mb/s
Maximum data transfer rate (2.4 GHz)
  • 574.00 Mb/s
5 GHz
2.4 GHz
Ports & interfaces
RS-232 interface
Ethernet LAN (RJ-45) ports
  • 4.00
Security
Number of SSID supported
  • 16.00
Security algorithms
  • EAP-AKA
  • EAP-FAST
  • EAP-GTC
  • EAP-SIM
  • EAP-TLS
  • EAP-TTLS
  • MSCHAPv2
  • PEAP
  • WPA
  • WPA2
  • WPA3
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
Fortinet FortiAP 23JF. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1200 Mbit/s. Security algorithms: EAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, WPA, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product color: White
