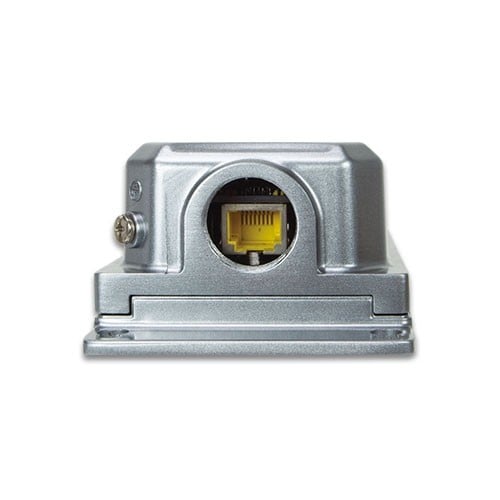

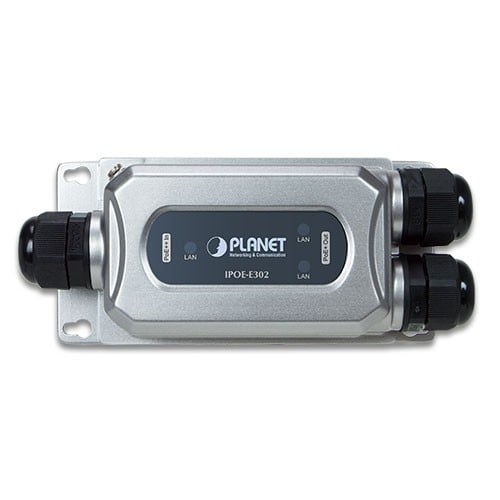

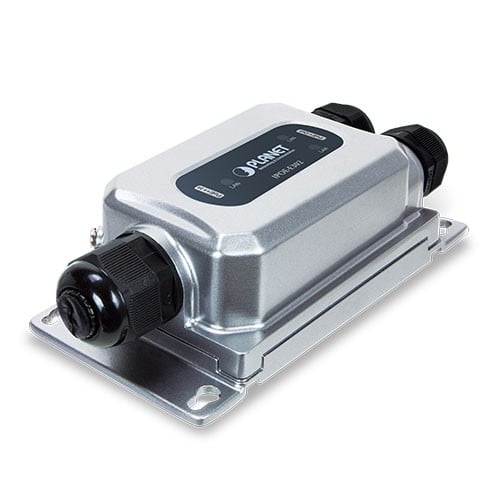

Planet IPOE-E302 IP67-rated Industrial 1-Port 802.3bt PoE++ to 2-Port 802.3at/bt PoE++ Extender (...
Product symbol: IPOE-E302
EAN code: 4711605284929
Previous Next
Availability
Location Available Ordered
Main warehouse
External warehouse 1
Price
Net 522,18 zł
Gross (23% VAT) 642,28 zł
Basic data
Item namePlanet IPOE-E302 IP67-rated Industrial 1-Port 802.3bt PoE++ to 2-Port 802.3at/bt PoE++ Extender (-40~75 degrees C, IK10 impact protection), 3 x waterproof cable
Product symbolIPOE-E302
Package sizes (HxWxL)50 x 190 x 190 mm
Weight gross0.60 kg
Available markets
  • UA
  • IE
  • GB
  • CH
  • ZA
  • PL
  • DE
  • ES
  • FR
  • IT
  • CZ
  • SK
  • HU
  • DK
  • NL
  • SE
  • GR
  • LT
  • AT
  • SI
  • LV
  • BG
  • RO
  • PT
  • BE
  • NO
  • FI
  • HR
  • GH
  • CI
  • EE
  • LI
  • LU
  • KE
  • MA
  • IL
  • CM
  • CD
  • CY
  • Amazon
Logistics data
Harmonized System (HS) code
  • 85176990
Weight & dimensions
Width
  • 150.00 millimeter
Depth
  • 43.80 millimeter
Height
  • 72.94 millimeter
Weight
  • 339.00 gram
Power
Total Power over Ethernet (PoE) budget
  • 65.00 W
Power consumption (max)
  • 97.00 W
Power over Ethernet (PoE)
Operational conditions
Operating temperature (T-T)
  • -40 - 75
Operating relative humidity (H-H)
  • 5 - 95
Storage temperature (T-T)
  • -40 - 85
Storage relative humidity (H-H)
  • 5 - 95
Design
Certification
  • FCC 15 A, CE IEC 60068-2-32, IEC 60068-2-27, IEC 60068-2-6
LED indicators
  • Activity, Link
Product color
  • Black, Gray
Network
Networking standards
  • IEEE 802.3
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
  • IEEE 802.3u
  • IEEE 802.3x
Performance
International Protection (IP) code
  • IP67
Auto-negotiation
Duplex system
  • Full
  • Half
Jumbo frames support
Flow control support
MAC address table
  • 2000 entries
Ethernet LAN data rates
  • 10,100,1000 Mbit/s
Type
  • Network transmitter
Ports & interfaces
Ethernet LAN (RJ-45) ports
  • 3.00
Despite making every effort, we cannot guarantee that the presented photos and descriptions do not contain errors; however, this cannot become the basis for claims.
PLANET IPOE-E302. Type: Network transmitter, Ethernet LAN data rates: 10,100,1000 Mbit/s, Duplex system: Full, Half. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. Product color: Black, Gray, LED indicators: Activity, Link, Certification: FCC 15 A, CE IEC 60068-2-32, IEC 60068-2-27, IEC 60068-2-6. Power consumption (max): 97 W, Total Power over Ethernet (PoE) budget: 65 W. Width: 5.91" (150 mm), Depth: 1.72" (43.8 mm), Height: 2.87" (72.9 mm)
