| Location | Available | Ordered |
|---|---|---|
| Main warehouse | ||
| External warehouse 7 | ||
| External warehouse 5 | ||
| External warehouse 4 |
| Price | |
|---|---|
| Net | 1 293,32 zł |
| Gross (23% VAT) | 1 590,78 zł |
| Basic data | |
| Item name | Ubiquiti Networks UniFi 16-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U (USW-16-POE) |
| Product symbol | USW-16-POE |
| Package sizes (HxWxL) | 120 x 520 x 310 mm |
| Weight gross | 3.80 kg |
| Available markets |
|
| Logistics data | |
| Harmonized System (HS) code |
|
| Weight & dimensions | |
| Height |
|
| Width |
|
| Depth |
|
| Weight |
|
| Power | |
| AC input frequency |
|
| Power supply included |
|
| DC input voltage |
|
| AC input voltage |
|
| Certificates | |
| Certification |
|
| Data transmission | |
| Jumbo frames support |
|
| Static route |
|
| Throughput |
|
| Switching capacity |
|
| Forwarding rate |
|
| Operational conditions | |
| Operating temperature (T-T) |
|
| Operating relative humidity (H-H) |
|
| Design | |
| LED indicators |
|
| Form factor |
|
| Stackable |
|
| Product color |
|
| Rack mounting |
|
| Network | |
| Auto MDI/MDI-X |
|
| Spanning tree protocol |
|
| Auto-sensing |
|
| VLAN support |
|
| Full duplex |
|
| Port mirroring |
|
| Flow control support |
|
| Networking standards |
|
| Ports & interfaces | |
| SFP module slots quantity |
|
| Basic switching RJ-45 Ethernet ports type |
|
| Basic switching RJ-45 Ethernet ports quantity |
|
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget |
|
| Power over Ethernet (PoE) power per port |
|
| Power over Ethernet plus (PoE+) ports quantity |
|
| Power over Ethernet (PoE) |
|
| Security | |
| Authentication type |
|
| Management features | |
| Switch layer |
|
| Switch type |
|

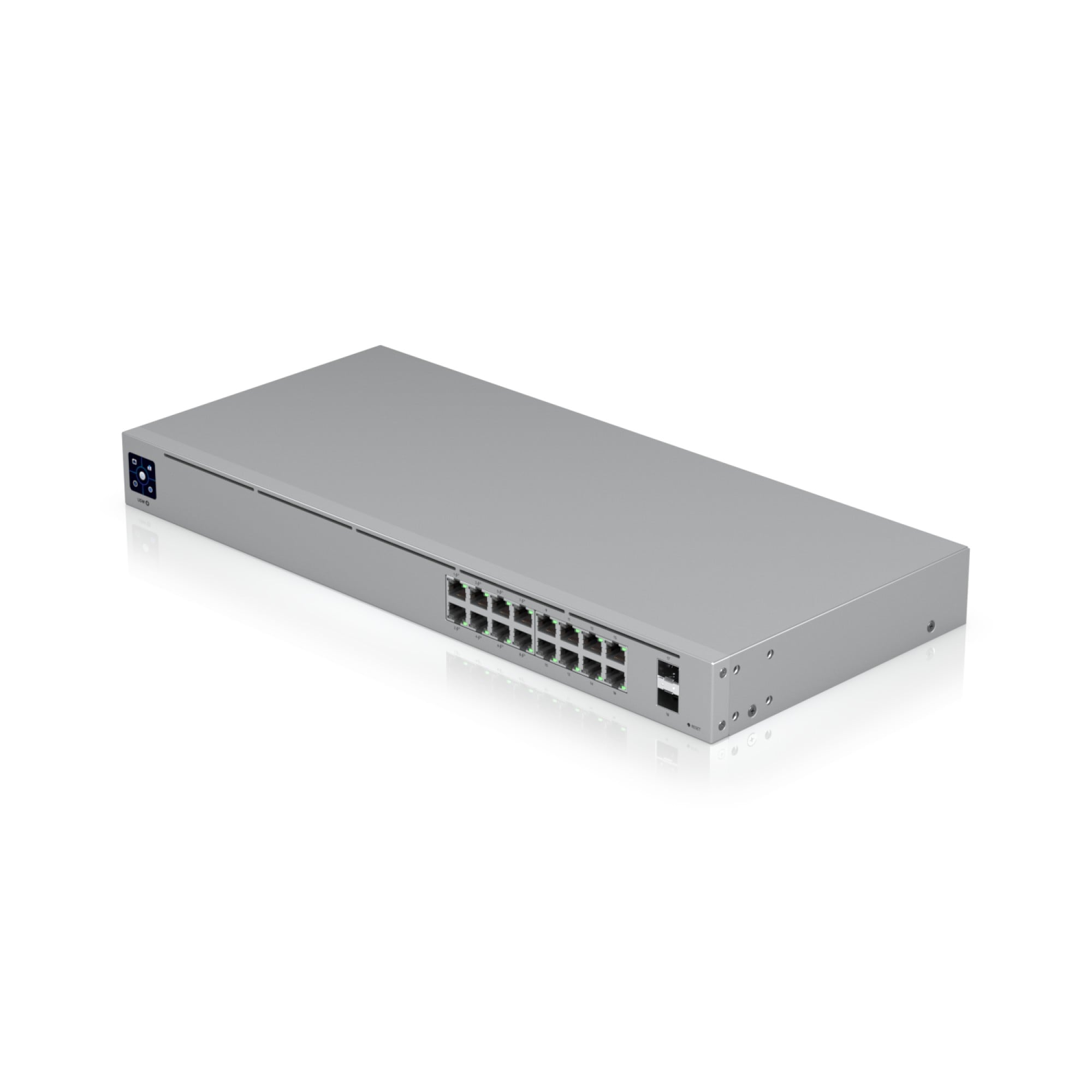

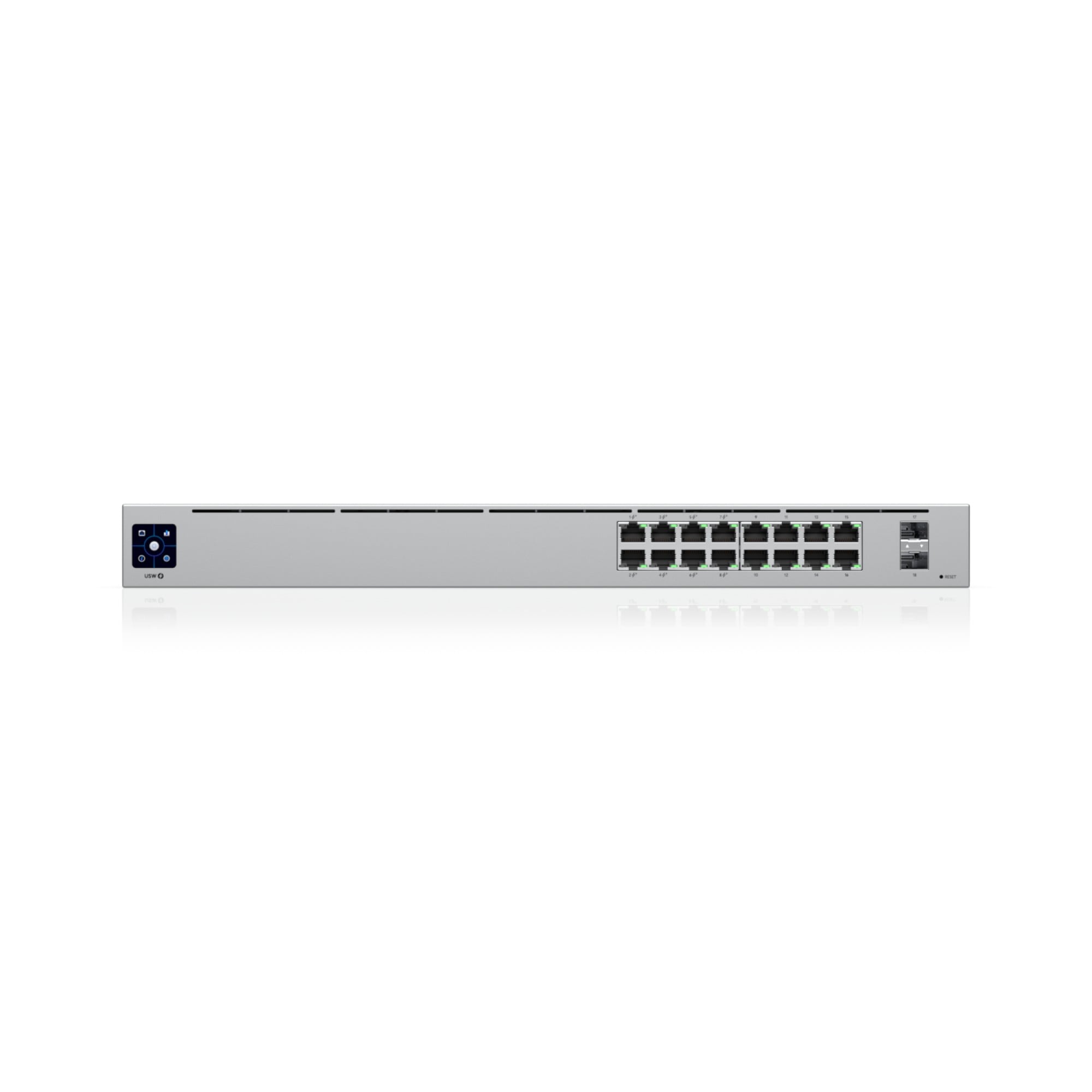

Ubiquiti Networks UniFi 16-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U
Ubiquiti Networks UniFi USW-16-POE
The USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-16-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.
Managed and configured by the UniFi Network application with UniFi mobile app support, the USW-16-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network application and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Fiber Connectivity
SFP ports enable network uplinks of up to 1 Gbps.
Fanless, Silent Cooling
The UniFi PoE Switch features fanless, silent thermal cooling*, so it can be deployed in areas where fan noise would be distracting.
Switching Performance
The UniFi PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
802.3af/at PoE
PoE support simplifies your network infrastructure and cabling. PoE ports offer 802.3af/at to power your PoE devices, such as UniFi APs and cameras.
Additional Product Notes
- (16) Gigabit Ethernet Ports including (8) 802.3at PoE+ Ports
- (2) 1G SFP Ports
- 1.3" touch LCM
- Managed with UniFi application
| Networking standards | Switch type | Switch layer | Basic switching RJ-45 Ethernet ports quantity | Basic switching RJ-45 Ethernet ports type | Switching capacity |
| IEEE 802.3af,IEEE 802.3at | Managed | L2/L3 | 16 | Gigabit Ethernet (10/100/1000) | 36 Gbit/s |
